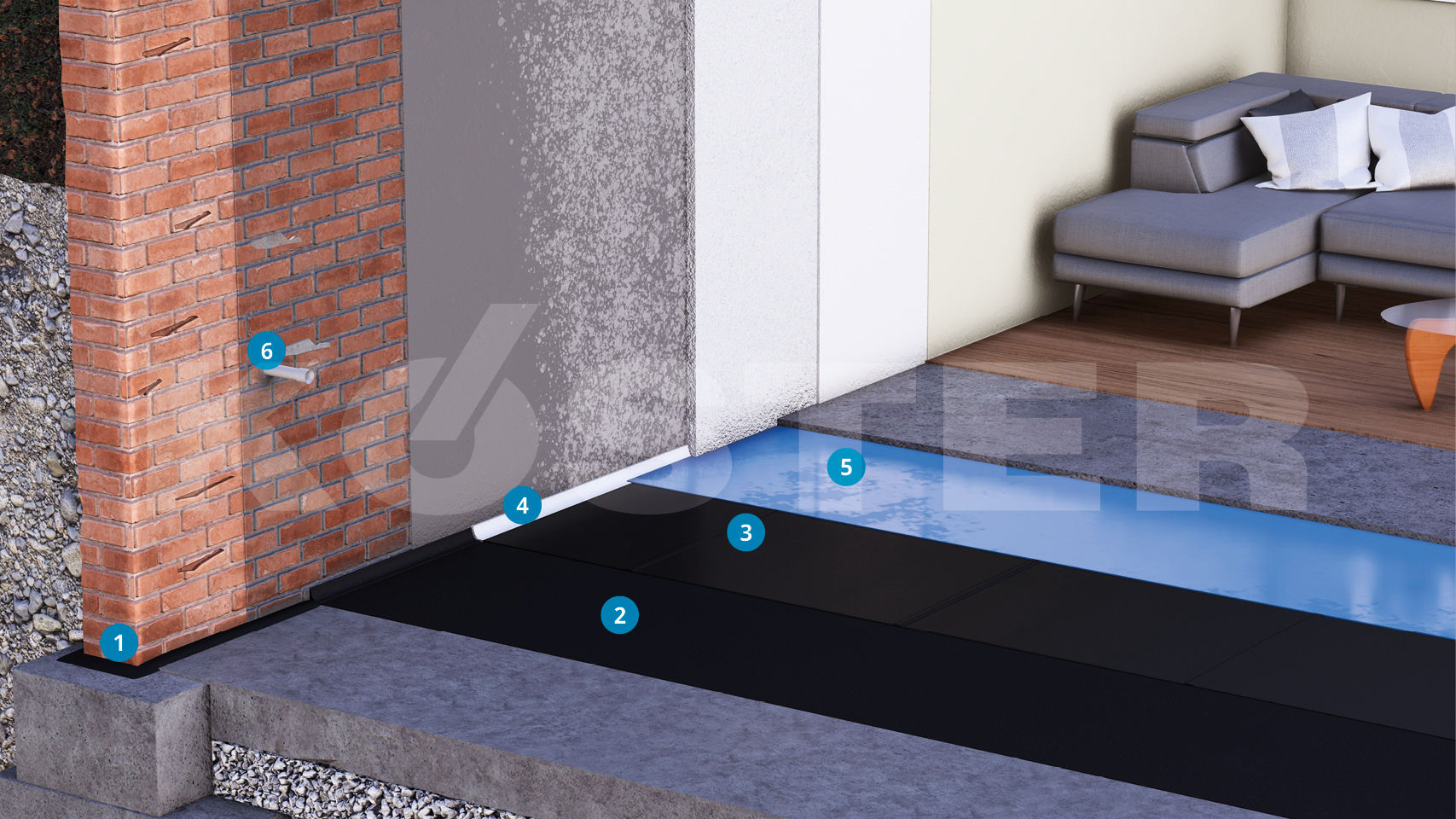

Internal basement waterproofing on the foundation plate with cold-adhesive waterproofing membranes

1 Horizontal barriers for walls
KÖSTER Fix-Tape 15 SY
2 Primer
KÖSTER Primer BL
3 Waterproofing Layer
KÖSTER KSK SY 15
4 Edge Waterproofing
KÖSTER Butyl Fix-Tape Fleece
5 Protection layer (PE foil)
Customary PE-foil
6 Waterproofing pipe penetrations
KÖSTER KB-Flex 200

Fast, easy application without long waiting times: Waterproofing of the floor slab with KÖSTER KSK cold applied, self adhesive waterproofing membranes.

To avoid rising moisture, it is necessary to install a horizontal barrier underneath the wall with KÖSTER Fix-Tape 15 SY. The priming is done with solvent free materials such as KÖSTER KSK Primer BL or KÖSTER KBE Liquid Film, or KÖSTER Bitumen Primer.

As a standard the primed surface of the floor slab is waterproofed with the cold applied, self adhesive waterproofing membrane KÖSTER KSK SY 15. Overlap the joints 8 cm. The waterproofing layer is carried up the wall and secured with the KÖSTER Butyl Fix-Tape Fleece.

The applied KÖSTER KSK Membranes have to be protected from mechanical damage as work continues. Before pouring the screed, a gliding layer of customary PE-Foil is applied.

Always adhere to the specifications in the respective Technical Guidelines.
